ECG Case 261 Interpretation

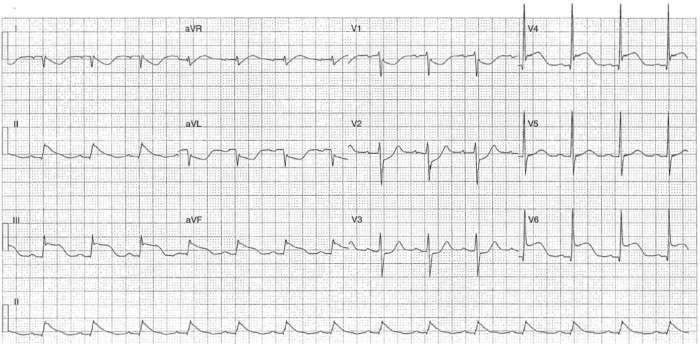

This post is an answer to the ECG Case 261

  • Rate: ~84 bpm
  • Rhythm: Regular
  • Axis: RAD
  • Intervals:
    • PR – Prolonged(~220ms)
    • QRS – Normal (80-100ms)
    • QT – 400ms (QTc Bazette 470-480 ms)
  • Segments:
    • ST Elevation in leads II, III, aVF, V4, V6
      • Unusual ST morphology in inferior leads
    • ST depression in lead aVL, V1-3

  • Additional:
    • Note complete lead inversion leads I, aVL – negative P/QRS/T

Interpretation

  • STEMI
  • Lead malposition
    • Likely V4 and V5 reversed
    • RA / LA limb lead reversal resultant inversion lead I, II/III switched and aVR/aVL switched

What happened ?

The patient was taken for urgent PCI which was normal ! He subsequently went on to have a CT brain which showed an extensive sub-arachnoid haemorrhage.

There are a number of cases in the literature were sub-arachnoid hemorrhage has been associated with significant ST changes.
