Atrial Flutter: ECG Interpretation [With Examples]

ECG Characteristics of Atrial Flutter

Characteristic features of Atrial Flutter are:

  • Atrial rate around 300/min
  • ‘Sawtooth’ baseline
  • AV block (commonly 2:1, but can be 3:1, 4:1 or variable)

In atrial flutter the atrial rate is usually 250–350/min and often almost exactly 300/min. The AV node cannot normally keep up with such a high atrial rate and AV block occurs.

This is most commonly 2:1 block, where only alternate atrial impulses get through the AV node to initiate a QRS complex, although 3:1, 4:1 (image1) or variable degrees of block (image2) are also seen. Thus, the ventricular rate is less than the atrial rate, and is often 150, 100 or 75/min.

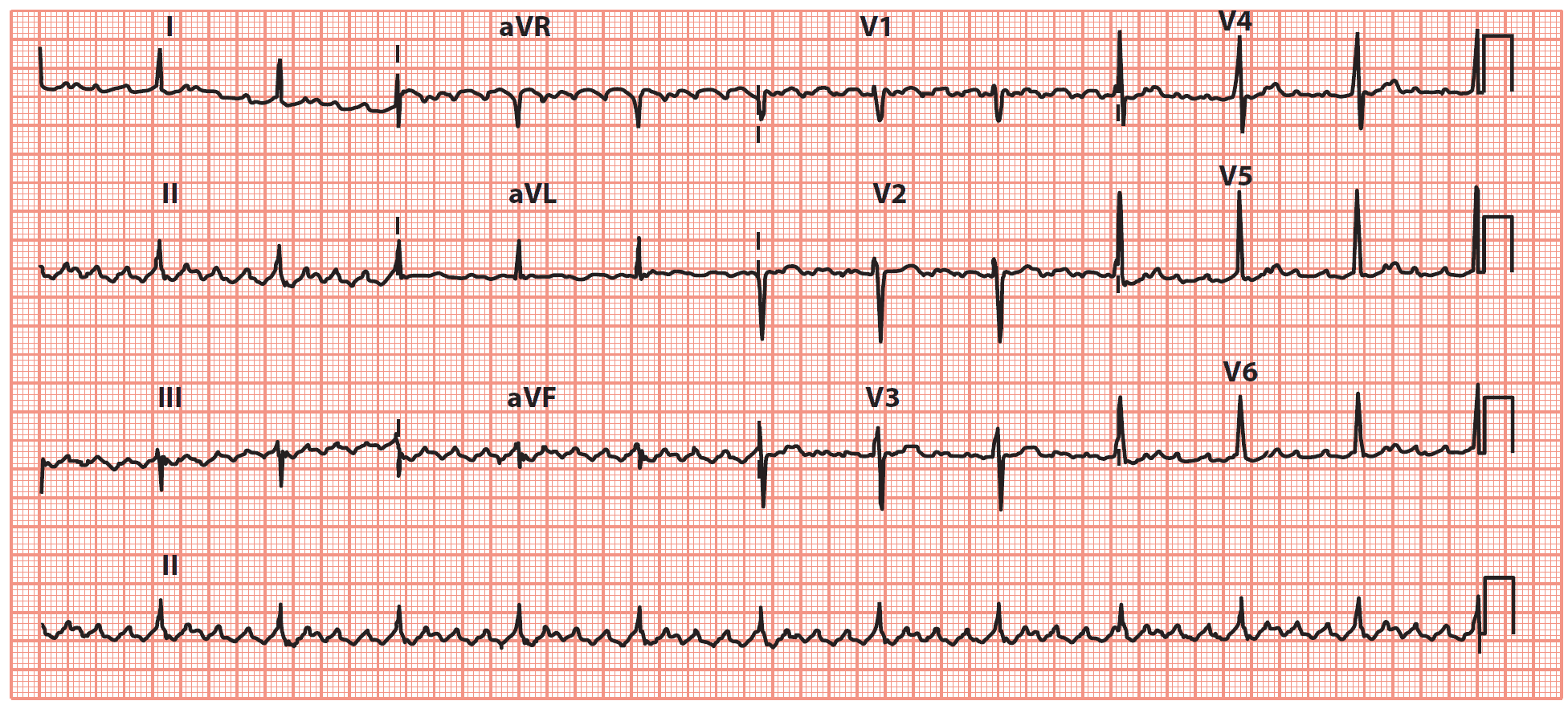

Atrial Flutter with ‘sawtooth’ pattern of atrial activity, with an atrial rate of 288/min and a ventricular rate of 72/min (indicating 4:1 AV block)
Atrial Flutter with 4-1 AV Block
Key point: • There is a ‘sawtooth’ pattern of atrial activity, with an atrial rate of 288/min and a ventricular rate of 72/min (indicating 4:1 AV block).

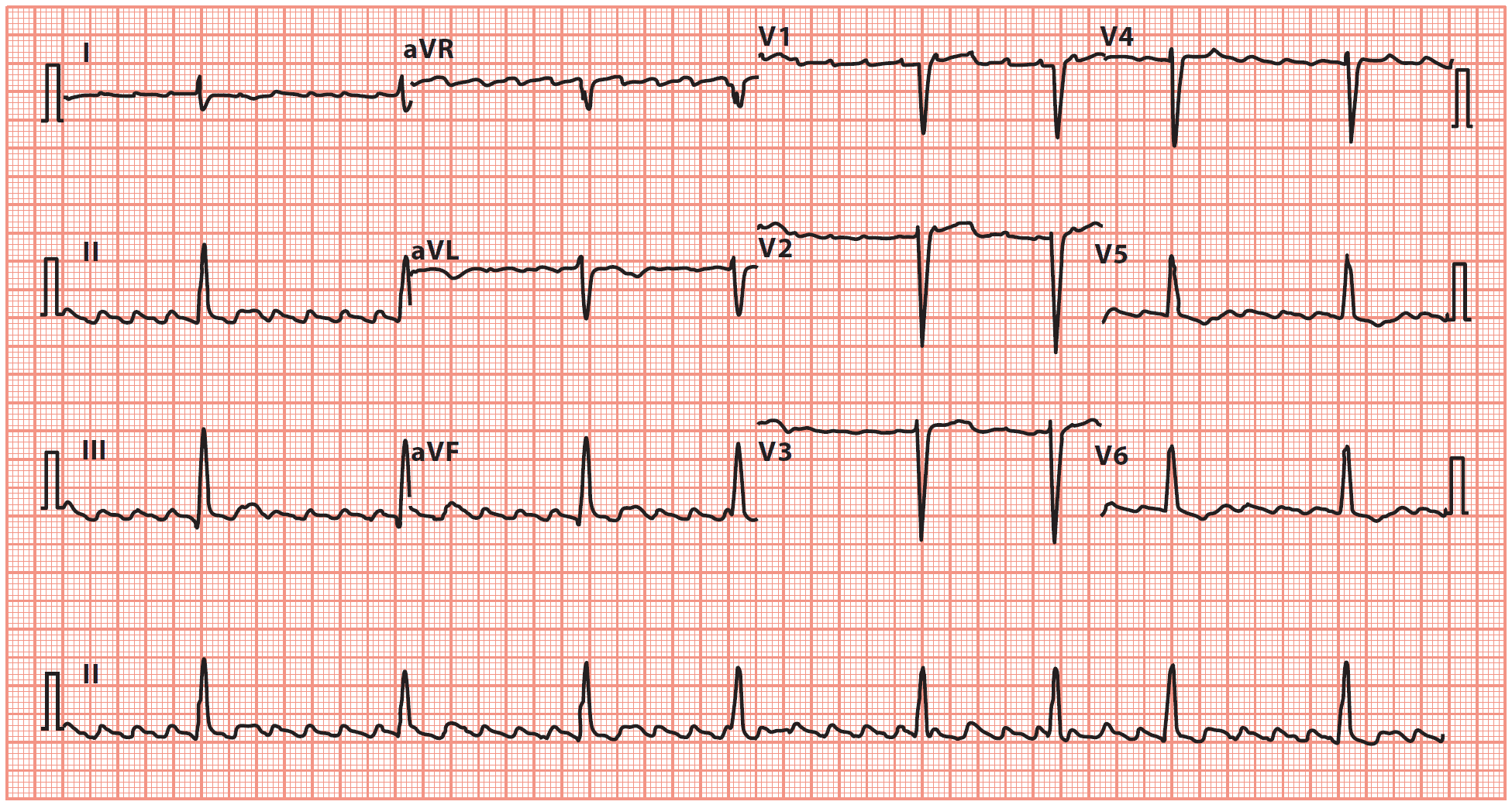

Atrial Flutter with ‘sawtooth’ pattern of atrial activity, with an atrial rate of 250/min and a ventricular rate of 48/min. The ventricular rhythm is irregular, indicating variable AV block.
Atrial Flutter with Variable AV Block
Key points:There is a ‘sawtooth’ pattern of atrial activity, with an atrial rate of 250/min and a ventricular rate of 48/min.
• The ventricular rhythm is irregular, indicating variable AV block.

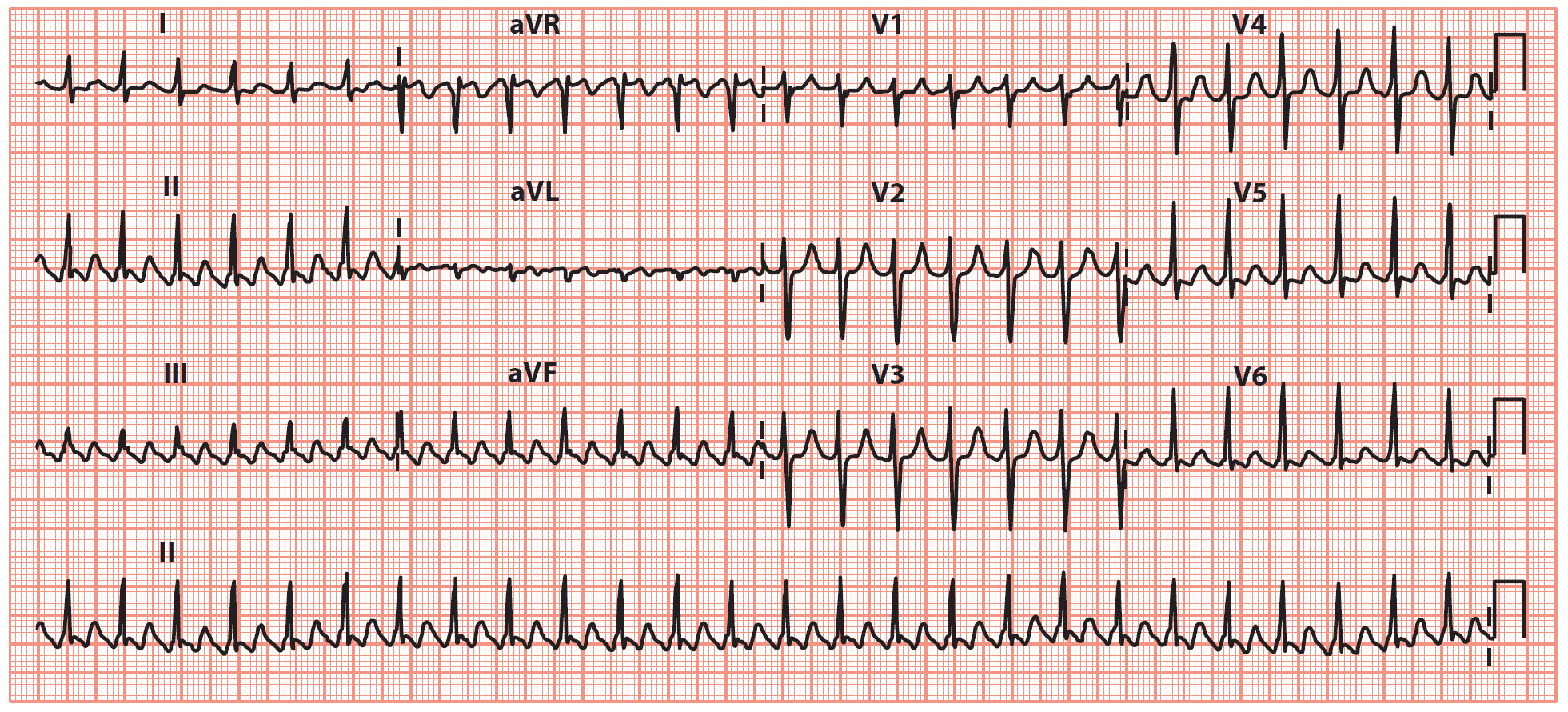

Atrial Flutter with ‘sawtooth’ pattern of atrial activity, with an atrial rate of 300/min and a ventricular rate of 150/min (indicating 2:1 AV block)
Atrial Flutter with 2:1 AV Block
Key point:There is a ‘sawtooth’ pattern of atrial activity, with an atrial rate of 300/min and a ventricular rate of 150/min (indicating 2:1 AV block).

You should always suspect atrial flutter with 2:1 block when a patient has a regular tachycardia with a ventricular rate of about 150/min.

READ MORE about Conduction Blocks at the AV Node (AV Blocks)

The rapid atrial rate gives a characteristic ‘sawtooth’ appearance to the baseline of the ECG, made up of flutter or ‘F’ waves. This can be made more apparent by carotid sinus massage or by giving adenosine. This will not terminate the atrial flutter, but will increase the degree of AV block, making the baseline easier to see by reducing the number of QRS complexes.

Note: Carotid sinus massage should be performed with the patient supine and with the neck slightly extended. Do not perform carotid sinus massage if carotid bruits are present, or if there is a history of cerebral thromboembolism. Massage the carotid artery on one side of the neck, medial to the sternomastoid muscle, for 5 s. The technique can be repeated, if necessary, on the opposite side after waiting for 1 min. The ECG must be monitored continuously throughout the procedure.

Pathophysiology of Atrial Flutter

Atrial flutter is often considered to be a subtype of atrial tachycardia and is characterized by a macro re-entry circuit, typically within the right atrium and involving the cavotricuspid isthmus (CTI-dependent or Type I flutter).

Less commonly, other forms of flutter are seen that do not involve the CTI (non- CTI-dependent or Type II flutter). These usually occur in relation to an area of scar tissue in the atria, often in the context of prior cardiac surgery.

In the commonest form of atrial flutter, it takes about 0.2 s for the impulse to complete a circuit in the right atrium (in most cases moving in a counterclockwise direction), each time giving rise to a wave of depolarization and a flutter wave on the ECG. There are thus about five flutter waves every second, and so around 300 every minute.

Atrial Flutter: Causes and Predisposing Factors

The causes and predisposing factors for atrial flutter are similar to those for AF.

  • Hypertension
  • Ischaemic heart disease
  • Valvular heart disease
  • Cardiomyopathies
  • Myocarditis
  • Atrial septal defect and other congenital heart disease
  • Hyperthyroidism
  • Alcohol
  • Pulmonary embolism
  • Pneumonia
  • Cardiac surgery

Atrial Flutter Treatment: Rate and Rhythm Control

Rate Control of Atrial Flutter

Although these drugs can be used simply to control the ventricular response, it is preferable to aim to restore sinus rhythm with rhythm control.

Rhythm Control of Atrial Flutter

  • Synchronized Electrical Cardioversion (70-120 J)
  • Drugs:
    • Ibutilide
    • Dofetilide
    • Sotalol
    • Amiodarone

Atrial flutter can be converted to sinus rhythm with electrical cardioversion in the same way as for AF, although often with lower energy levels.

Prevention of Atrial Flutter Recurrences

  • Drugs:
    • Amiodarone
    • Propafenone
    • Sotalol
  • Radiofrequency cathetet ablation

Although drug therapy can be used to help maintain sinus rhythm in the long term, it is usually preferable to consider radiofrequency ablation of the atrial flutter circuit as it has a success rate >95%.

Great care has to be taken if flecainide is used in the treatment of paroxysmal atrial flutter. Flecainide can cause a paradoxical increase in ventricular rate (due to slowing of the atrial rate, which then facilitates 1:1 AV node conduction). If flecainide is used in the treatment of atrial flutter, it is usually given in conjunction with a negative chronotrope such as a beta blocker or digoxin to reduce the risk of high ventricular rates.
